Detailed introduction:

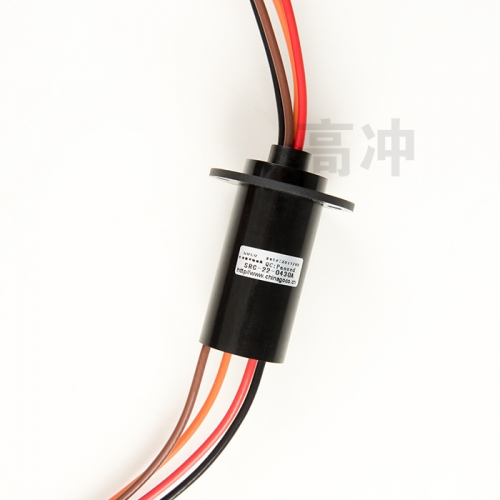

Src-30-0430a cap type conductive slip ring |
◆ The src-30-0430a is a wind power slip ring, with an outer diameter of 31mm, a length of 66mm and 4-way * 30A
◆ Domestic advanced military grade high standard surface treatment technology is adopted to make the internal structure more precise and compact
◆ Gold gold contact ensures stability and service life. It is mainly used in civil and commercial fields
◆ Smooth operation, compact structure, low torque, compatible with data bus protocol
◆ The stator wire and the rotor wire are matched with colored wires to simplify the circuit connection
◆ The conductive ring adopts 90 degree angle V-groove design, with smooth rotation, low torque and low electrical noise
◆ Product integrated structure, advanced fiber brush technology, support power, signal mixed transmission
Some application fields
★ Yuntai | ★ Electrical test equipment |
★ Rotary table | ★ Medical equipment |
★ CCTV security monitoring equipment | ★ Robot |
★ Exhibition / display equipment | ★ Manufacturing and handling control equipment |
★ Small wind turbine | ★ Radar antenna |
Outline drawing
Technical parameter
Number of channels | Route 4 | Rpeed | 300 rpm |
Rated current | 30A / road | Protection level | IP54 |
Rated voltage | 220V | Contact materials | Noble metal |
Insulation resistance | 500MΩ@500VDC | Shell material | Engineering materials |
Electrical noise | 10mΩ @ 6VDC,50mA,5Rpm | Torque | 0.01N.M |
Working life | 大于500万转 | Bearing | High precision ball bearing |
Working temperature | -40℃ ~ +80℃ | Wire specification | AWG#12 Teflon wire UL |
Relative humidity | 60% | Conductor length | 300mm |
Mechanical vibration | MIL-SID-810E | Environmental certification | ROHS certification |
Inner diameter * Outer diameter | 0 * 22mm | CE certification | YES |
Be careful:
1) Product life is closely related to rotational speed, temperature, humidity and other parameters
2) Wire specification: 30A / signal → awg12
3) Electrical noise is closely related to working speed, current and voltage
Conductor color code table
Ring code | #1 | #2 | #3 | #4 | #5 | #6 |
Color code | black | brown | red | orange | yellow | green |
