STANDARD PRODUCTS

•

  Cap slip rin



  Cap type conductive slip ring is the general name of a series of conductive slip rings with round flange attached to the shell. The cap type slip ring looks like a cap with compact design, small volume and convenient installation.
•

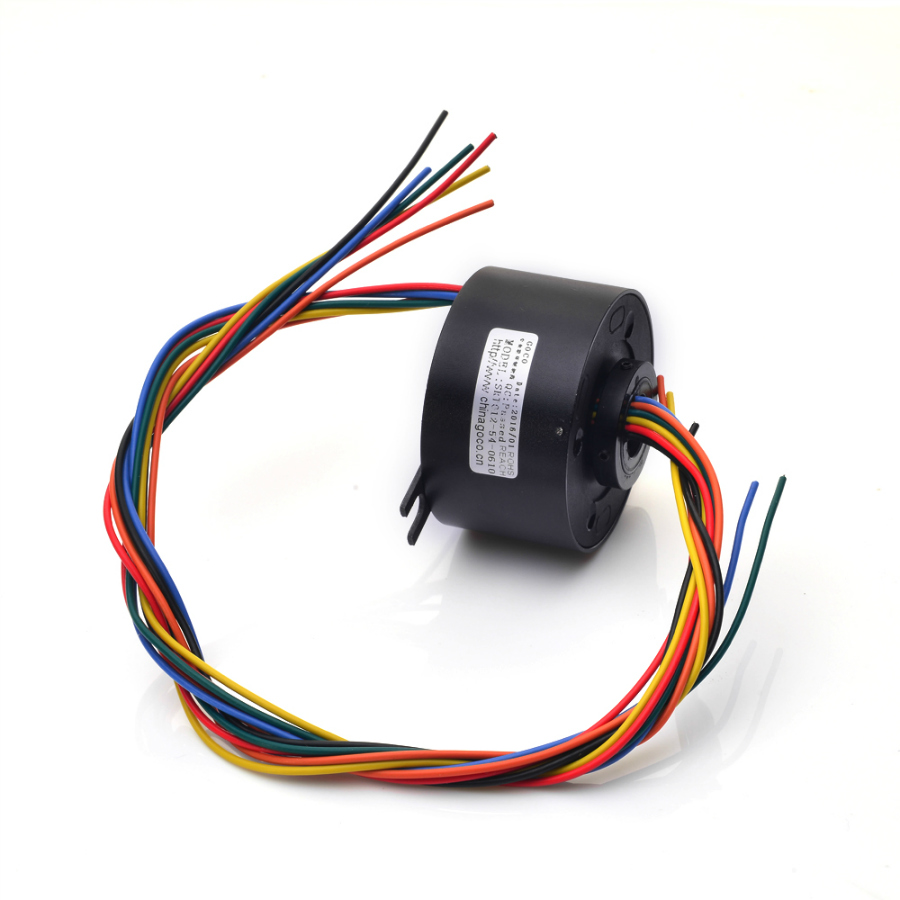

  Hollow shaft



  Hollow shaft slip ring is also called through hole slip ring through hole type conductive slip ring, which is a series of conductive slip rings with holes in the center. The slip ring is installed on the rotating shaft or the center hole of the pipeline needs to be left in the middle
•

  Wind power s



  Slip ring in the wind power generation system is responsible for the power, control signal and data transmission function of the whole system, and it is a very key component in the whole wind turbine system. Through hole small wind power slip ring is suitable for the yaw rotation of horizontal axis series wind turbine.
•

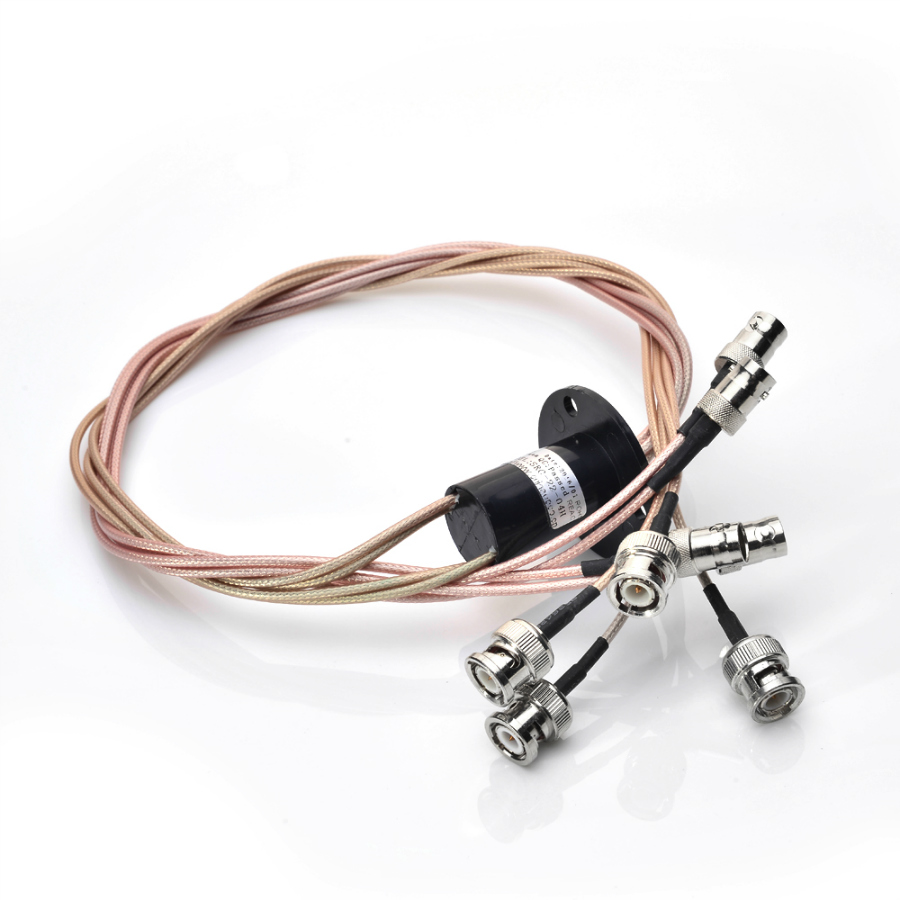

  HD-SDI (1080



  MSDI series of HD slip ring adopts components imported from the United States and high-frequency signal processing technology. It is a high-end conductive slip ring independently developed and designed for 1080p HD signal. The highest speed can reach 2.5GHz, and can mix 1 ~ 24 channels of signals and small current. The product adopts US military surface treatment process and super hard gold coating treatment to ensure extremely low resistance fluctuation and ultra long working life.
•

  Disc slip ri



  The disc slip ring is specially designed for the rotary connection system with a certain height limit in the vertical direction; The minimum thickness of slip ring height is only 6.5mm, which can be selected from 40mm. The size of via can be selected from 10 mm to 300 mm.
•

  Waterproof a



  The waterproof conductive slip ring can be used for 360 degree protection in humid, ordinary underwater and seawater environments ° The rotary joint transmits power and various signals and communications. The product has stable performance and reliable quality. The waterproof grade can be customized from ip54-ip68.
•

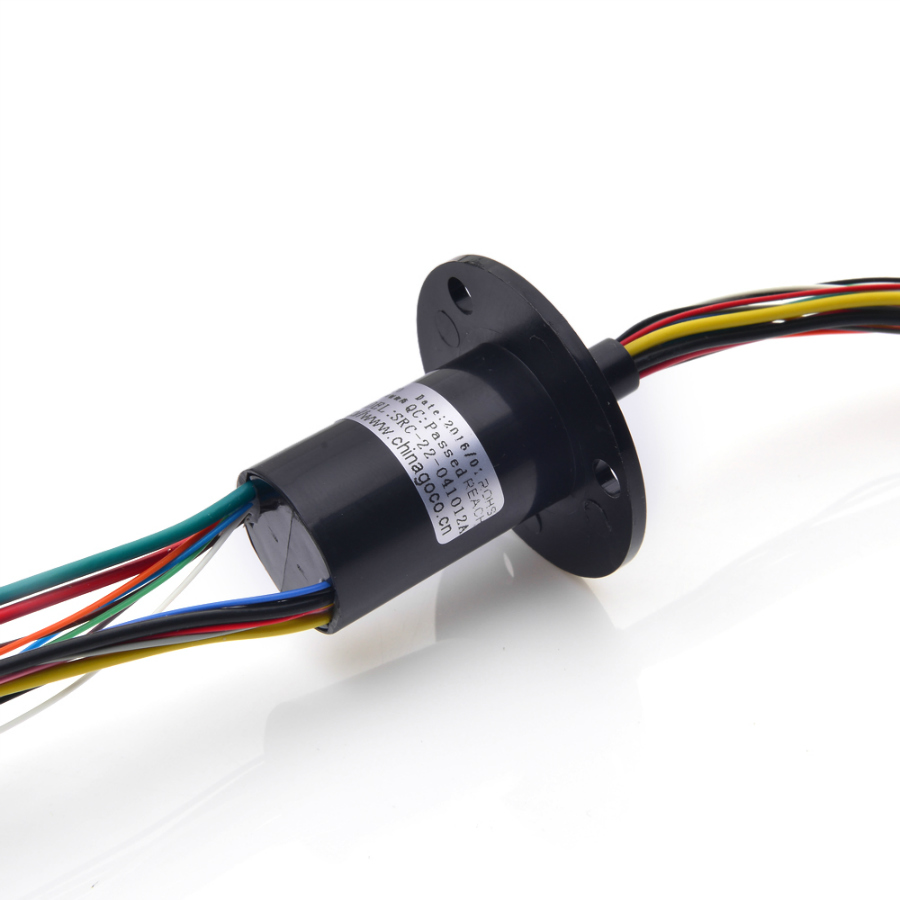

  Toy tank sli



  Slip ring is a key part of the toy system, which is responsible for the power, control signal and data transmission of the whole system
•

  Custom slip



  Customized according to customer's requirements, mostly used in military equipment, medical equipment or large mechanical equipment. Our company has strong R & D strength, first-class production equipment and high-tech processing technology, and has long-term and extensive cooperation with domestic famous scientific research institutes.
•

  Antenna slip



  Antenna slip ring is a special slip ring used in satellite antenna, which can rotate 360 degrees to provide more stable signal for antenna.
• High frequen



  High frequency slip ring is specially developed for high-speed serial digital signal or analog signal transmission. The maximum transmission rate can reach 40GHz. This series of products support single or multi-channel high-frequency signal transmission separately, and the high-frequency signal adopts 50 Ω Characteristic impedance RF coaxial structure head.
• Split slip r



  Detachable slip ring is provided in some applications where due to size limitations, there is no need for full closure. The combination of detachable rotor and contact brush can solve your problem of 360 ° The problem of rotary connection. It is suitable for all kinds of small precision instruments or super large rotating shaft applications. At the same time, we can customize various sizes of separate slip rings according to your specific needs.
• Fiber optic



  Optical fiber rotary joint, also known as optical fiber slip ring and photoelectric slip ring, uses optical fiber as data transmission medium, which provides the best technical solution for data transmission between system components with rotary connection. It is especially suitable for the occasions that need unlimited, continuous or intermittent rotation, and need to transfer large capacity data from fixed position to rotating position.
