Srt012-56-1810 hollow shaft conductive slip ring       Number of channels: 18   Main body outer diameter: 56 mm

◆ Srt012-56-1810 is a standard cap slip ring with an outer diameter of 56mm, a length of 66mm, and a length of 18 channels * 10A (signal)

◆ Domestic advanced military grade high standard surface treatment technology is adopted to make the internal structure more precise and compact

◆ Gold gold contact ensures stability and service life. It is mainly used in civil and commercial fields

◆ Smooth operation, compact structure, low torque, compatible with data bus protocol

◆ The stator wire and the rotor wire are matched with colored wires to simplify the circuit connection

◆ The conductive ring adopts 90 degree angle V-groove design, with smooth rotation, low torque and low electrical noise

◆ Product integrated structure, advanced fiber brush technology, support power, signal mixed transmission

Some application fields

★ Yuntai	★ Electrical test equipment
★ Rotary table	★ Medical equipment
★ CCTV security monitoring equipment	★ Robot
★ Exhibition / display equipment	★ Manufacturing and handling control equipment
★ Small wind turbine	★ Radar antenna

---

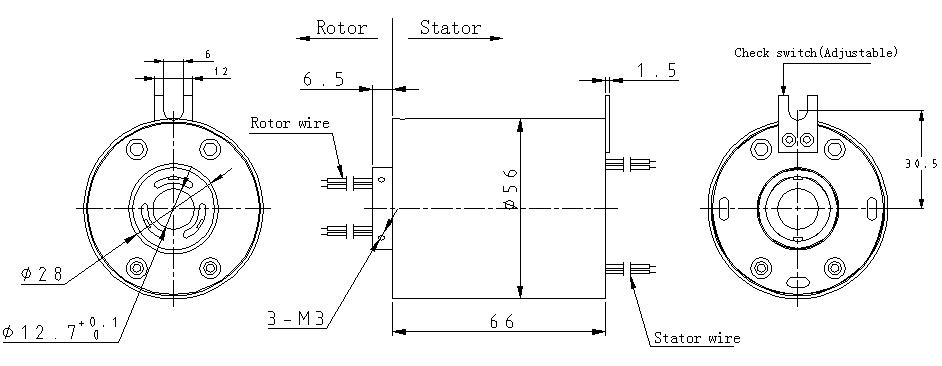

Outline drawing

---

Technical parameter

---

Number of channels	18 way	Speed	300 rpm
Rated current	10A / road	Protection level	IP54
Rated voltage	220V	Contact materials	Noble metal
Insulation resistance	500MΩ@500VDC	Shell material	Engineering materials
Electrical noise	10mΩ @ 6VDC,50mA,5Rpm	Torque	0.01N.M
Working life	More than 5 million rpm	Bearing model	61805zz bearing steel
Working temperature	-40℃ ～ +80℃	Wire specification	AWG#17 Teflon wire  UL
Relative humidity	60%	Conductor length	300mm
Mechanical vibration	MIL-SID-810E	Environmental certification	ROHS certification
Inner diameter * Outer diameter	12.7mm* 56mm	CE certification	YES

---

Be careful:

1) Product life is closely related to rotational speed, temperature, humidity and other parameters

2) Wire specification: 1.5a/signal, awg30, 5A, awg22, 10a, awg17, 15a, awg14, color code identification

3) Electrical noise is closely related to working speed, current and voltage

---

Conductor color code table

---

Ring code	#1	#2	#3	#4	#5	#6
Color code	black	red	yellow	green	blue	purple
Ring code	#7	#8	#9	#10	#11	#12
Color code	black	red	yellow	green	blue	purple
Ring code	#13	#14	#15	#16	#17	#18
Color code	black	red	yellow	green	blue	purple
