Detailed introduction:

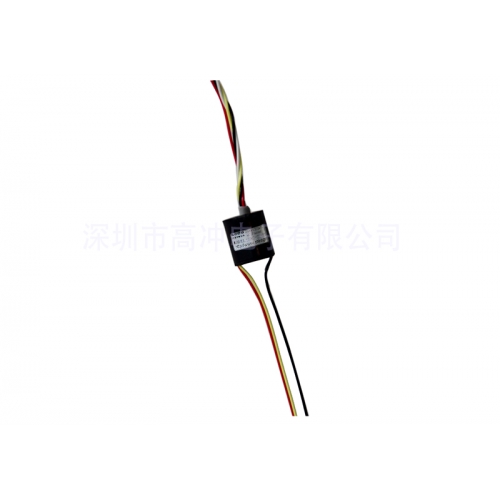

Srms-08-04u cap type conductive slip ring
Number of channels: 4 Main body outer diameter: 8.5 mm |
◆ The src-22-04u is a standard cap type slip ring, with an outer diameter of 8.5mm and a length of 8.9mm, and 4 channels * 1a (signal)
◆ Domestic advanced military grade high standard surface treatment technology is adopted to make the internal structure more precise and compact
◆ Gold gold contact ensures stability and service life. It is mainly used in civil and commercial fields
◆ Smooth operation, compact structure, low torque, compatible with data bus protocol
◆ The stator wire and the rotor wire are matched with colored wires to simplify the circuit connection
◆ The conductive ring adopts 90 degree angle V-groove design, with smooth rotation, low torque and low electrical noise
◆ Product integrated structure, advanced fiber brush technology, support power, signal mixed transmission
Some application fields
★ Yuntai | ★ Electrical test equipment |
★ Rotary table | ★ Medical equipment |
★CCTV security monitoring equipment | ★Robot |
★ Exhibition / display equipment | ★ Manufacturing and handling control equipment |
★ Small wind turbine | ★ Radar antenna |

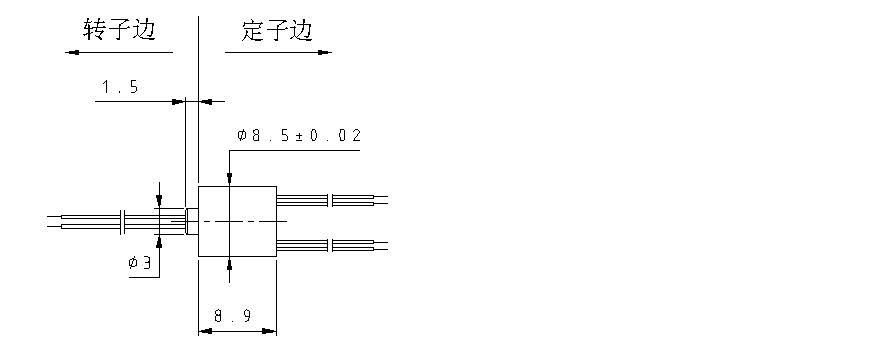

Outline drawing
Technical parameter
Number of channels | Route 4 | Speed | 100转/分钟 |
额定电流 | 1A/路 | 防护等级 | IP54 |
额定电压 | 220V | 接触材料 | 贵金属 |
绝缘电阻 | 500MΩ@500VDC | 壳体材料 | 工程朔料 |
电气噪音 | 10mΩ @ 6VDC,50mA,5Rpm | 扭矩 | 0.01N.M |
工作寿命 | 大于500万转 | 轴承 | 高精密滚珠轴承 |
工作温度 | -40℃ ~ +80℃ | 导线规格 | AWG#30 Teflon wire UL |
相对湿度 | 60% | 导线长度 | 250mm |
机械震动 | MIL-SID-810E | 环保认证 | RoHS 认证 |
内径*外径 | 0 * 8.5mm | CE认证 | YES |
注意:
1)产品寿命和转速以及温度,湿度等参数紧密相关.
2)导线规格: 1A/信号 -> AWG30, 2A/信号 -> AWG28, 5A -> AWG22, 10A -> Awg17, 15A -> Awg14, 色码标识.
3)电气噪音与工作转速,电流,电压精密相关.
导线色码表
环码 | #1 | #2 | #3 | #4 |
色玛 | 黑 | 褐 | 红 | 橙 |
