Detailed introduction:

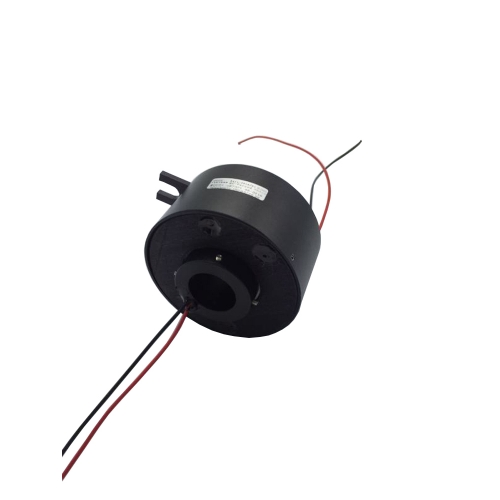

Srt025-86-0210 cap type conductive slip ring
Outer diameter of main body: 86 mm |
◆ Srt025-86-0210 is a standard hollow shaft slip ring, with outer diameter of 86mm, length of mm, 2-way * 10A (signal)
◆ Domestic advanced military grade high standard surface treatment technology is adopted to make the internal structure more precise and compact
◆ Gold gold contact ensures stability and service life. It is mainly used in civil and commercial fields
◆ Smooth operation, compact structure, low torque, compatible with data bus protocol
◆ The stator wire and the rotor wire are matched with colored wires to simplify the circuit connection
◆ The conductive ring adopts 90 degree angle V-groove design, with smooth rotation, low torque and low electrical noise
◆ Product integrated structure, advanced fiber brush technology, support power, signal mixed transmission
Some application fields
★ Yuntai | ★ Electrical test equipment |
★ Rotary table | ★ Medical equipment |
★ CCTV security monitoring equipment | ★ Robot |
★ Exhibition / display equipment | ★ Manufacturing and handling control equipment |
★ Small wind turbine | ★ Radar antenna |

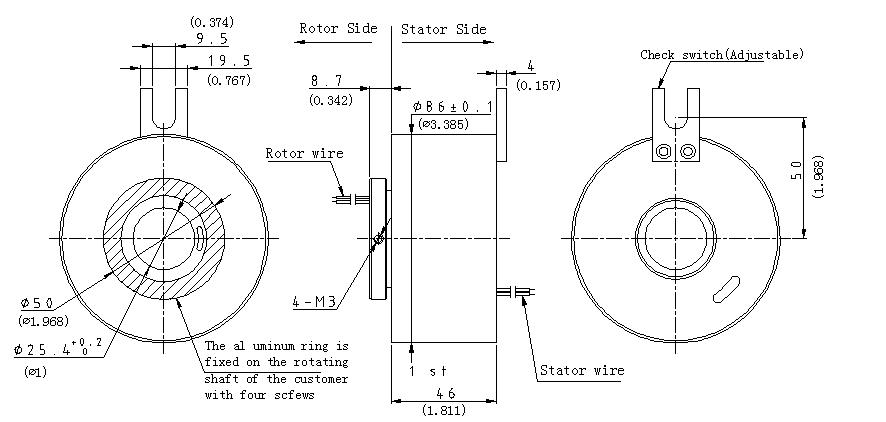

Outline drawing
Technical parameter
通路数 | 2路 | 转速 | 300转/分钟 |
额定电流 | 10A/路 | 防护等级 | IP54 |
额定电压 | 220V | 接触材料 | 贵金属 |
绝缘电阻 | 500MΩ@500VDC | 壳体材料 | 工程朔料 |
电气噪音 | 10mΩ @ 6VDC,50mA,5Rpm | 扭矩 | 0.01N.M |
工作寿命 | 大于500万转 | 轴承 | 高精密滚珠轴承 |
工作温度 | -40℃ ~ +80℃ | 导线规格 | AWG#17 Teflon wire UL |
相对湿度 | 60% | 导线长度 | 300mm |
机械震动 | MIL-SID-810E | 环保认证 | RoHS 认证 |
内径*外径 | 25.4mm* 86mm | CE认证 | YES |
Be careful:
1) Product life is closely related to rotational speed, temperature, humidity and other parameters
2) Wire specification: 5A, awg22, 10a, awg17, 15a, awg14, color code identification
3) Electrical noise is closely related to working speed, current and voltage
Conductor color code table
Ring code | #1 | #2 |
Color code | black | red |
